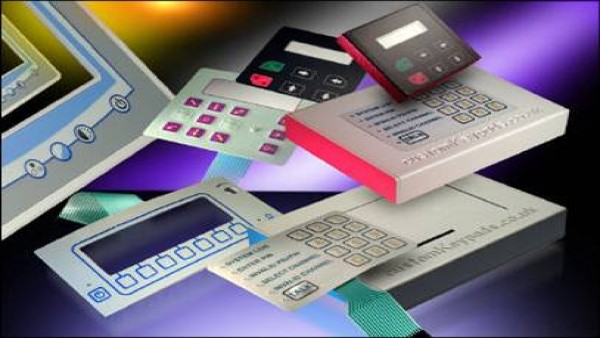

1. Introduction to Membrane Switch Technology
Membrane switches are thin, flexible devices that serve as the user interface in many electronic applications Unlike traditional mechanical switches, a membrane switch is designed with layered components and offers an efficient, reliable solution for user input.Industries favor membrane switches because they are lightweight, waterproof, and easy to clean, making them ideal for harsh environments and compact electronic designs. From medical equipment to household appliances, membrane switches are used for their adaptability and durability, providing tactile or non-tactile responses depending on user needs.
Membrane switches stand out due to their versatility in customization. Users can modify the design, adding backlighting, embossing, or custom colors. The simplicity of their construction enables long-lasting operation even in demanding conditions.
2. Structure and Components of a Membrane Switch
A membrane switch typically consists of several layers, each contributing to its durability and function:
Graphic Overlay: This top layer displays the user interface design. It may include symbols, text, or logos and is often made of polyester for durability.
Spacer Layer: This layer separates the switch contacts, allowing the user to activate the switch by pressing down on the graphic overlay.
Circuit Layer: Printed circuits made of conductive materials, like silver or copper, enable current flow when the switch is pressed.
Adhesive Layer: The adhesive layer secures the switch components together, ensuring consistent function without risk of moisture or dirt entering.
These components provide a membrane switch with flexibility, allowing it to meet diverse environmental and user requirements.
3. Key Advantages of Membrane Switches
Membrane switches offer several advantages over mechanical switches, making them highly effective in many applications:
Cost-Effective: Due to simple construction and minimal material use, membrane switches are affordable, especially in large volumes.
Durability and Sealing: Membrane switches are typically sealed against dust, moisture, and contaminants, allowing them to last in harsh conditions. They can also be rated with an IP (Ingress Protection) rating, demonstrating their resilience to environmental factors.
Ease of Cleaning: The smooth surface of a membrane switch is easy to sanitize, a crucial feature in medical and food-processing industries where cleanliness is essential.
Customization Options: Membrane switches can incorporate LED backlighting, metal domes for tactile feedback, or custom colors to match branding, offering flexibility for any user interface.
With these benefits, membrane switches serve as an efficient, cost-effective solution in applications where mechanical switches may fail or lack durability.
4. Applications of Membrane Switches Across Industries
The unique features of membrane switches make them suitable for various applications:
Medical Devices: Membrane switches are common in medical equipment where easy cleaning and reliable operation are critical. Their smooth surface prevents bacteria buildup, and theyre simple to disinfect.
Industrial Controls: In factories, membrane switches operate machinery in dusty or damp environments. They are sealed to resist contaminants and provide consistent feedback, crucial in industrial settings where dependability matters.
Consumer Electronics: Membrane switches are used in household appliances and remote controls, where their thin design and ease of use make them ideal. They allow for compact designs without sacrificing function.
Automotive Industry: In cars, membrane switches are used for dashboards and control panels. Their reliability and design adaptability suit the demanding automotive environment.
Each application benefits from the membrane switchs resilience and customizability, making it a highly valuable component in modern electronics.
5. Customization Options in Membrane Switch Design
Customization is a major strength of membrane switches. Below are a few ways they can be tailored to specific requirements:
Tactile Feedback: By adding metal domes, membrane switches can offer tactile feedback, providing a satisfying click when pressed. This option is common in industrial and medical applications where precise user feedback is essential.
Backlighting Options: LED and fiber-optic backlighting enable visibility in low-light conditions. Backlighting is especially useful in automotive and medical applications, where users need to see controls clearly in various lighting environments.
Graphics and Color Customization: Custom graphics and color choices allow the switch to integrate seamlessly into product designs, supporting branding and user experience.
Embossing and Texture: Embossing adds a three-dimensional feel to the graphic overlay, enhancing tactile feedback. Texture options also provide grip, helping users find buttons by touch alone.
These customization options allow manufacturers to optimize the membrane switch for any application, enhancing user satisfaction and product usability.
6. Maintenance and Longevity of Membrane Switches
The lifespan of a membrane switch is one of its standout features. With minimal moving parts, membrane switches can last up to a million cycles. Properly maintained, they retain functionality over years of heavy use:
Cleaning: Their flat surface makes membrane switches easy to clean, crucial in sterile environments like hospitals and food-processing plants.
Durability Testing: Many membrane switches are tested for resistance to extreme temperatures, humidity, and other environmental conditions. This resilience allows them to perform reliably in challenging settings.
Protection from Wear and Tear: Unlike mechanical switches, membrane switches are less prone to wear due to their simple design, with fewer exposed components that might wear down.
Longevity and minimal maintenance make membrane switches ideal for applications where replacement and repairs would be inconvenient or costly.
7. Future Trends in Membrane Switch Technology
Membrane switch technology continues to evolve as demand for efficient, durable user interfaces grows:
Integration with Smart Technology: As IoT and smart devices become more common, membrane switches are increasingly integrated into these networks, providing interactive control and data feedback in real time.
Enhanced Tactile Feedback Options: Advances in tactile response technology are improving user experience. Some membrane switches now feature advanced tactile feedback that mimics mechanical switches for applications where distinct feedback is needed.
Eco-Friendly Materials: Manufacturers are exploring sustainable materials for membrane switches to reduce environmental impact. Eco-friendly materials can provide the same durability without compromising on performance.
These trends indicate a bright future for membrane switches, especially in applications that demand reliable, cost-effective user interfaces.
Membrane switches continue to prove their value in a range of settings. Their flexibility, durability, and user-friendly design make them a popular choice across industries. As technology advances, membrane switches will remain a critical component of reliable, efficient, and innovative user interfaces.
